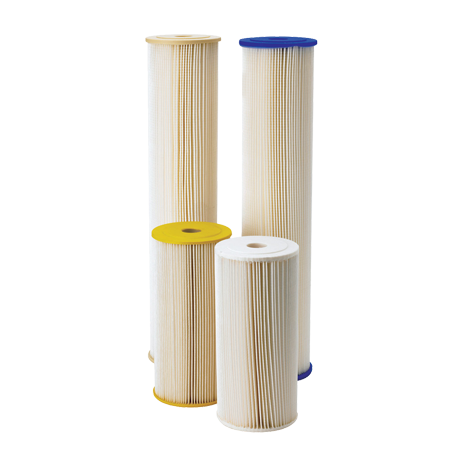

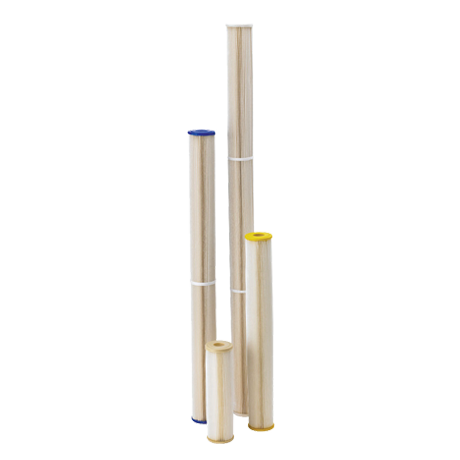

ECP Series are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop. The media is pleated around a polypropylene core for added strength.
Pentair ECP Series
Pentair ECP Series
Pentair ECP Series
Technical characteristics
- Length (inches)
- 9 3/4
- 20
Micron rating (microns)- 1
- 5
- 20
- 50
Family- Pleated
Features & Benefits
- Special formulation of resin-impregnated cellulose and polyester fiberProvides higher wet strength vs regular cellulose cartridges and high flow rates / dirt-holding capacity, for an extremely low pressure drop
- The media is pleated around a polypropylene core. The ends are immersed in a thermo-setting vinyl plastisolIncrease of the cartridge's strength
- A color-coding system of cartridge endcapsEasy identification of micron ratings
